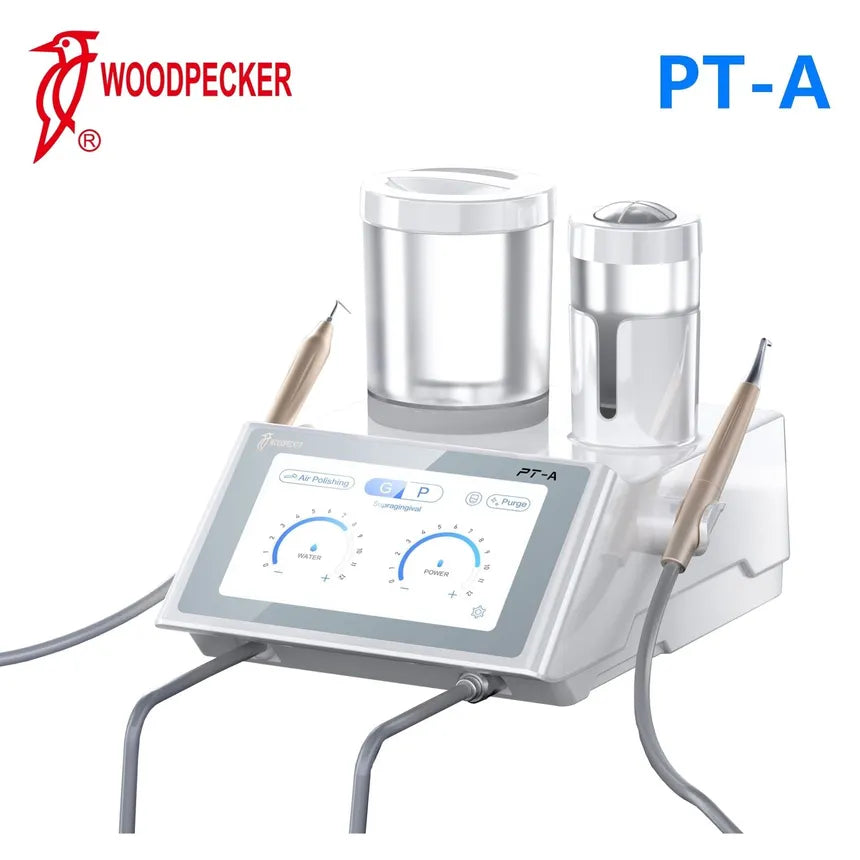

Woodpecker PT-A Dental Scaler and Air Polisher

Item # PT-A

Woodpecker PT-A model combines air polishing and scaling into a single, user-friendly system with an intuitive touch screen display. This comprehensive prophylaxis solution effectively removes plaque using compressed air to spray a powder-water mix, ensuring patient comfort while protecting the tooth surface.

The PTA features dual water supply bottles and a multifunctional foot pedal for enhanced efficiency. It is FDA approved and includes a one-year warranty for added reliability.

• Ultrasonic and Air Polishing Modes

The device automatically identifies the ultrasonic mode when using the ultrasonic handpiece and switches to air polishing mode with the air polishing handpiece.

• Air Polishing Benefits
  • Effective Plaque Removal: Air polishing excels in cleaning occlusal surfaces, interproximal areas, and around orthodontic brackets, achieving significant scaling results in hard-to-reach areas.
  • Surface Smoothing: Following ultrasonic or manual scaling, air polishing smooths the tooth surface, reducing roughness and minimizing plaque and pigment adhesion.

• Subgingival Air Polishing

This feature effectively manages inflammation in natural teeth and peri-implantitis, helping to reduce probing depths. The subgingival nozzle, made from flexible polymers, is 360° rotatable and designed to eliminate biofilms from hard-to-reach areas.

• • Recommended Angle: 30°-60°
  • Recommended Distance: 3-5 cm
    Compared to traditional scaling, this method provides superior cleaning for both tooth surfaces and complex implant threads.

• Three-Directional Powder Output

This design enhances cleaning efficiency, utilizing elliptical vibration to maintain a 0° angle between the tip and tooth surface for optimal polishing. The small-caliber nozzle allows for concentrated air polishing, while an anti-blocking system minimizes interruptions.

• Water and Air Supply

  • Outer Water Supply: Provides protection and warmth, facilitating washing and adjustment.
  • Inner Compressed Air and Powder: Effectively removes pigments, plaque, soft debris, and early tartar.

• Ultrasonic Periodontal Treatment

The elliptical vibration track disperses impact forces, ensuring the titanium alloy tip (hardness: HRC30) is gentler than cementum and enamel, preventing damage during treatment. In contrast, stainless steel tips have a hardness of HRC50.

• Endodontic Treatment and Implant Maintenance

The lightweight handpiece is designed for longevity and features dual water supply options, including two anti-corrosive water bottles (600ml and 1400ml) and an external water supply for special chemicals such as chlorhexidine, hydrogen peroxide, and sodium hypochlorite.

• Multi-Functional Foot Pedal

The foot pedal offers various modes for enhanced functionality:

• • Water Free Mode
  • Boost Mode
  • Washing Mode
  • Standard Mode

• Unit Modes

The device operates in three distinct modes to accommodate different treatment needs:

• (G) Scaling/Supragingival Air Polishing
• (P) Perio/Subgingival Air Polishing
• (E) Endodontic Treatment

Power Adapter Input:

• Voltage: 220-240V
• Frequency: 50Hz/60Hz
• Current: 400mA

Power Adapter Output:

• Voltage: 25V
• Frequency: 50Hz/60Hz
• Current: 2.8A

Main Unit Input:

• Voltage: 25V
• Frequency: 50Hz/60Hz
• Current: 2.8A
• Water Inlet Pressure: 1 bar to 5 bar (0.1MPa to 0.5MPa)
• Air Inlet Pressure: 5.5 bar to 7.5 bar (0.55MPa to 0.75MPa)
• Water Outlet Temperature Range: 0°C to 45°C
• Main Unit Weight: 2.75 kg
• Main Unit Dimensions: 330 mm (L) × 280 mm (W) × 120 mm (H)
