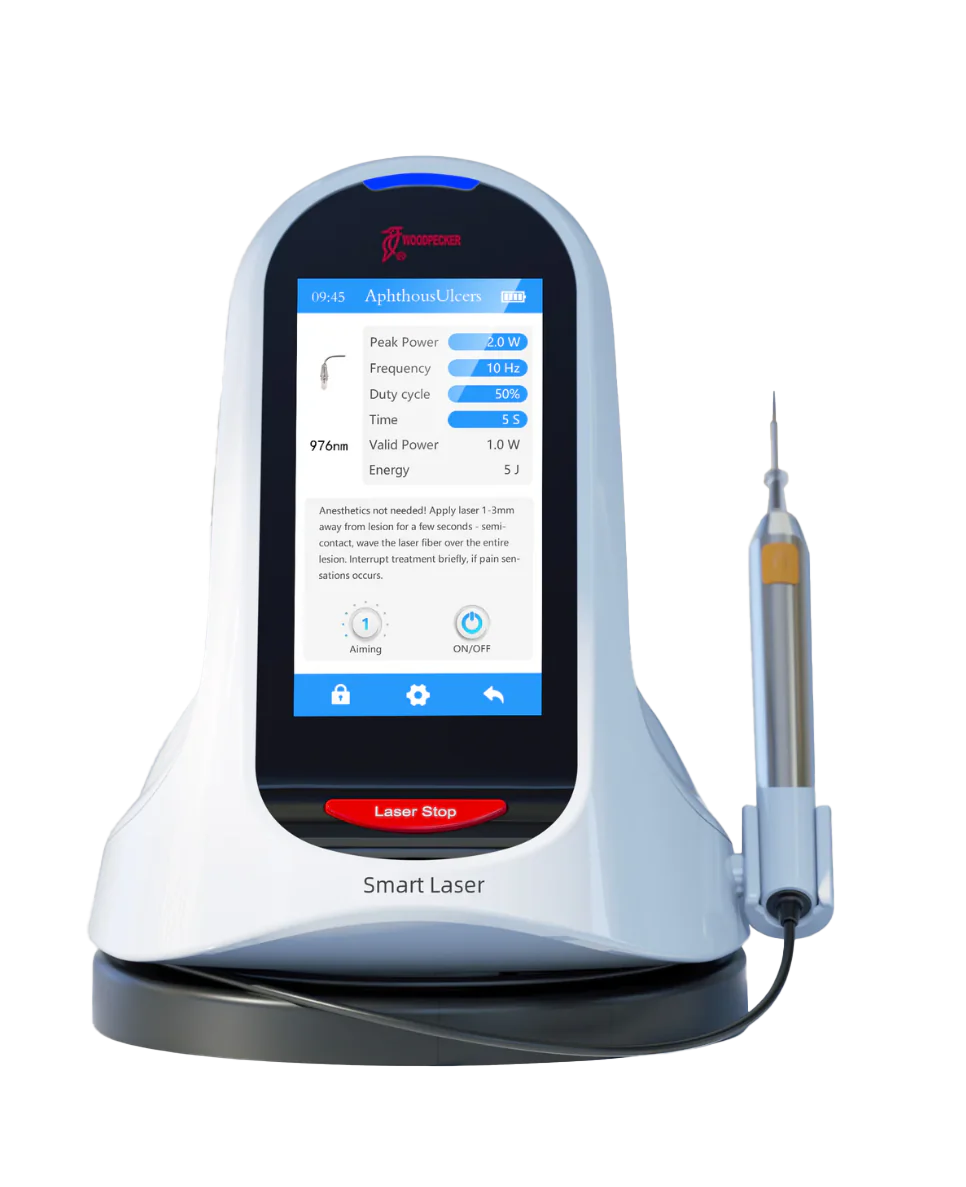

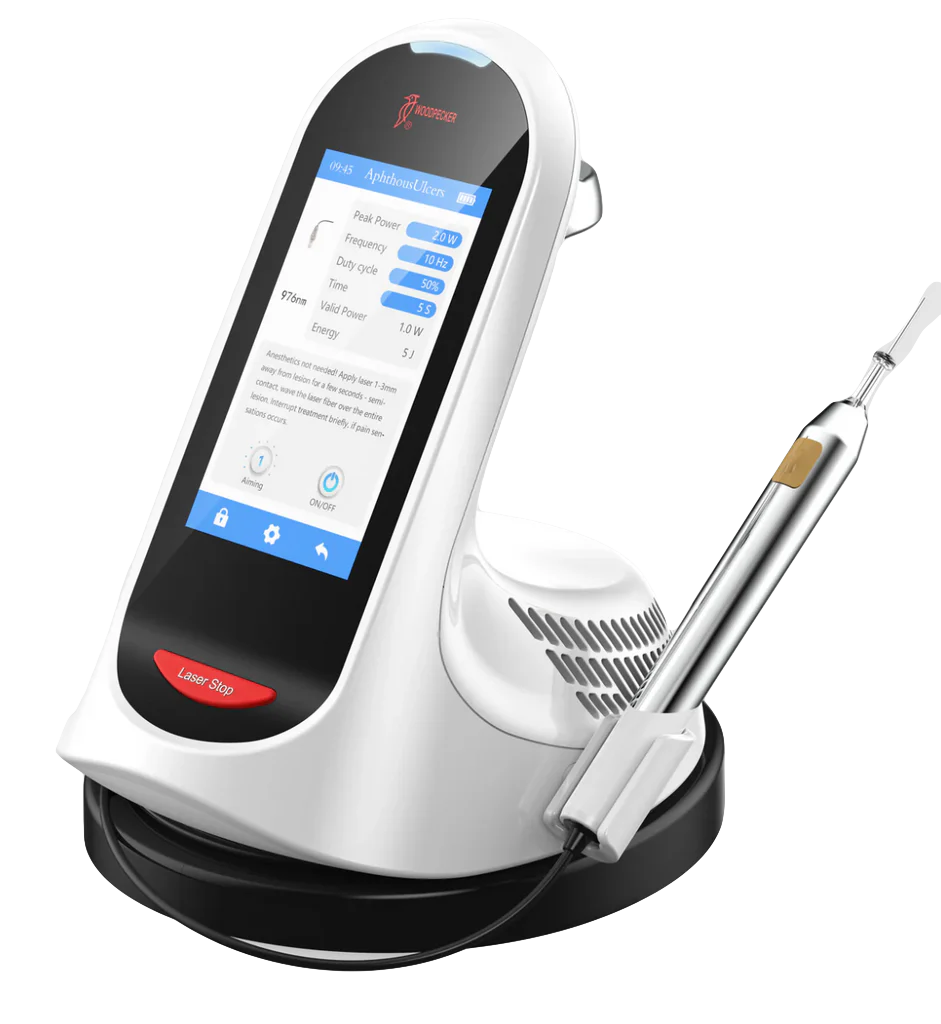

Woodpecker LX16 PLUS Smart Laser Dental Diode Laser

Item # LX16PLUS (LX16+)

Can be used for the fields of dental soft tissue surgery, endodontic sterilization, periodontal sterilization, peri-implantitis, low intensity laser therapy, oral ulcer, and teeth whitening.

Remarkable treatment effect: There is basically no bleeding during operation, maximally minimizing the postoperative swelling, reducing pain of patients, and accelerating the recovery.

• The innovative 450 nm blue laser technology is ideal for soft tissue cutting, ablation, coagulation and incision/excision. At 450 nm, the absorption constant of hemoglobin is two orders of magnitude for ordinary lasers (e.g. 980nm/810nm), making it only need very low laser power to complete the treatment, and the thermal damage during treatment is extremely low.
• 976nm is a traditional infrared dental laser. Due to its deep penetration in tissues, it is widely used for the reduction of bacteria in periodontal disease and endodontic diseases. At the same time, this wavelength is also suitable for high-power laser treatment (HPLT) and pain reduction in TMJ.
• The 650 nm laser is used for low-level laser therapy (LLLT) effects. It is also known as the photobiomodulation (PBM) effect. It will contribute to wound healing and biostimulation of dental surgery.

Power adapter input100-240Vac 50/60Hz 2.5A

Main unit input 15V 6.0A

Wavelength and power:

a. 976± 20nm 0.2W-4W(CW), Peak Power 5W

     chopped 1Hz to 20KHz

     chopped mode:5us €“ 0.9S

b. 650± 20nm  25mW-200mW(CW)

c. 450± 20nm  0.2W-3W(CW)

     chopped 1Hz to 20KHz

     chopped mode: 0.9S

Laser classification:

a) 976 nm: Class 4

b) 650 nm: Class 2

c) 450 nm: Class 4

Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )

Aiming beam:   650 ± 20 nm /Pmax<5mW

Divergence:12.7°(According to IEC 60825-1: 2014)

Rechargeable battery:   11.1V/2600mAh x2 (57.7Wh)

Time consumption for charging: about 4h (5 hours for first charging)

Diverging half angle: 0.22 mad/ 12.6 °

size: 22 cm x 20cm x 23cm

Weight: 1.5kg
