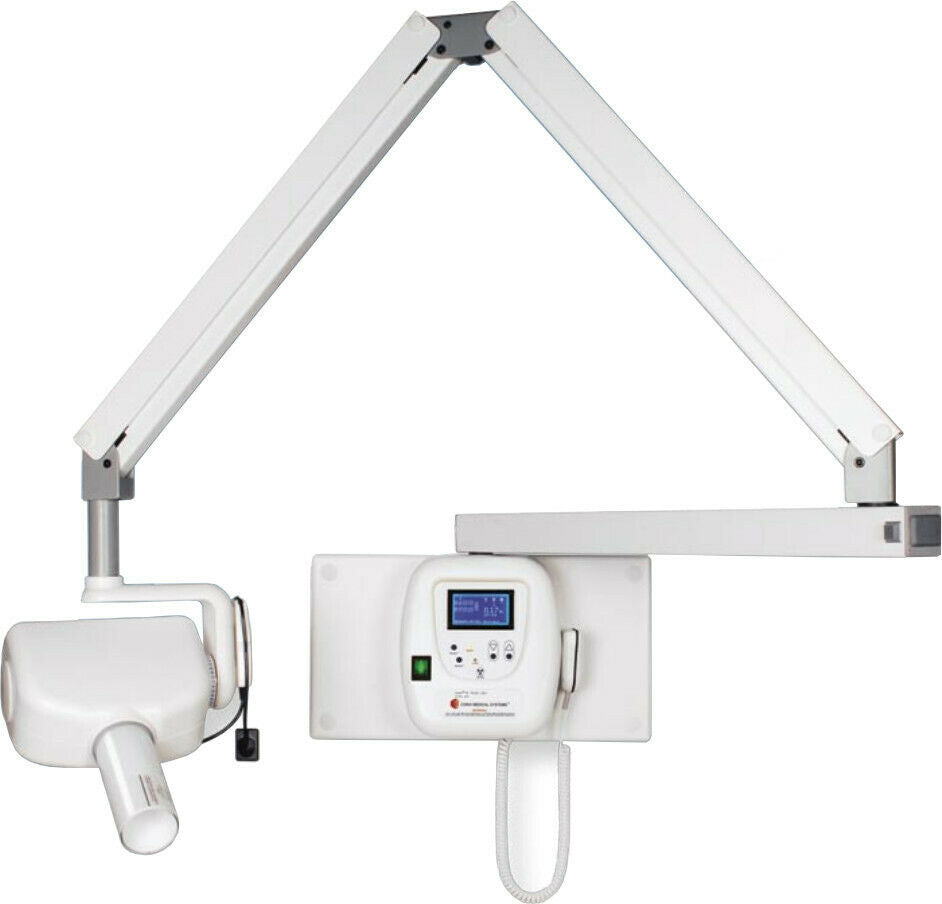

Corix 70 Plus USV Digital


    Dental Intraoral X-Ray Unit
    (FDA Listed)

    Simply select the desired tooth and patient size, and you're on your way.
    A powerful microprocessor automatically chooses the exposure time, according to the type and position of the tooth; options of three patient sizes;  film or digital sensor; with automatic compensation for the main voltage variation.  Manual override is optional if required.  Technical factors are displayed on a bright LCD Screen, with a sub-menu that provides additional options.

    ***Standard Wall Mount comes
    with 16" Wall Plate

    ***Single Stud Mount Available
    upon request.

    70 KVP tubehead with a small focal spot, low energy x-ray filter, and beam limiting device, assures outstanding sharpness, and maximum details in intra-oral radiography.
    Positioning is made easier with an angle indicator on one side of the unit.  Lead shields and critical components are over sized to provide additional years of safe and trouble-free operations


    LCD Display and Control Panel Exposure Timer, with a three digit LCD Display, fully compatible with the fastest film or digital imaging system with an array of sub-menu options only provided by Corix Medical Systems:

    • Four options of pre-heating time selections for the x-
      ray tube.

    Manual Override, if required.

    • Exposures counter.
    • Precision integrated digital voltmeter for monitoring
      the mains voltage variations.
    • Three internal exposure time calibration factors, to
      compensate for the sensitivity of the film or the CCD
    • Optional, remote x-ray button.
    • Optional, safety double x-ray buttons.

    Long Reach Double Positioning Arm
    The long reach scissors arm moves effortlessly through a wide area, yet folds
    compactly when not in use.  The scissors arm allows ease of positioning and drift free
    Standard Extension Arm (Wall Mounted version)
    Standard Extension Arm provides a total inside reach of 180.6cm (71 1/8")
    Corix 70 Plus-USV (optional Wall Mount, or Mobile Version)
    Conditions in your practice will dictate where to perform x-ray examinations.  With the
    Corix 70 Plus-USV you can choose the option that best fits your needs:
    Wall Mount--Wall mounted directly in the x-ray room or directly in the treatment room.
    Wall Mount can be stationed for side-by-side operatory stations.
    Standard Wall Mount provided with a 16" Wall Plate.
    Single Stud Mount available at an additional cost.
    Mobile Stand--mobile unit that allows reaching separate operatory stations on a sturdy
    and stable rolling stand.

    Technical Features:

    • Rated Line Voltage:  120V. +/- 10% (109-132VAC), 50/60Hz
    • Power Consumption:  1,050KW max @ 132VAC
    • Rated Tube Potential:  70kVp +/- 7% (Single phase, self rectifying).
    • Rated Tube Current:  8mA +/- 15% @ 120VAC
    • Exposure Time Range:  0.03 to 3.00sec., in steps of 0.01sec.  Plus,
      27 pre-set exposure times, with automatic main voltage
      compensation.  Four different Pre-heating pre-selected by the user
      are available for loading the x-ray tube (Pre-heating time is not shown
      on the display).
    • Minimum Focal Spot to Skin Distance:  200mm (8")
    • Radiation Leakage @ 1 m.  Less than 50mR/h (Technical Factors:
      70kVp, 8 mA, 1s.).
    • Focal Spot: 0.8 x 0.8mm
    • Total Filtration:  2mm. Al eq.
    • Net Weight:  63lbs (Wall mount),  90lbs (Mobile)
    • Shipping Weight:  72lbs (Wall mount), 102lbs (Mobile)
    • Shipping Dimensions:  (Wall Mount) 1 Box, 131 x 52 x 26cm.  (Mobile)
      2 Boxes; 111 x 34 x 25cm,  87 x 38 x 33cm.
