Clio Sensor Package with I5HD Cam and Integration Included
Clio Sensor Package with I5HD Cam and Integration Included
Clio Sensor Package with I5HD Cam and Integration Included
Clio Sensor Package with I5HD Cam and Integration Included
  • SKU:

Clio Sensor Package with I5HD Cam and Integration Included

$11,995.00 $15,599.00
    DESCRIPTION

    Clio Digital X-Ray Sensors Specs & Warranty

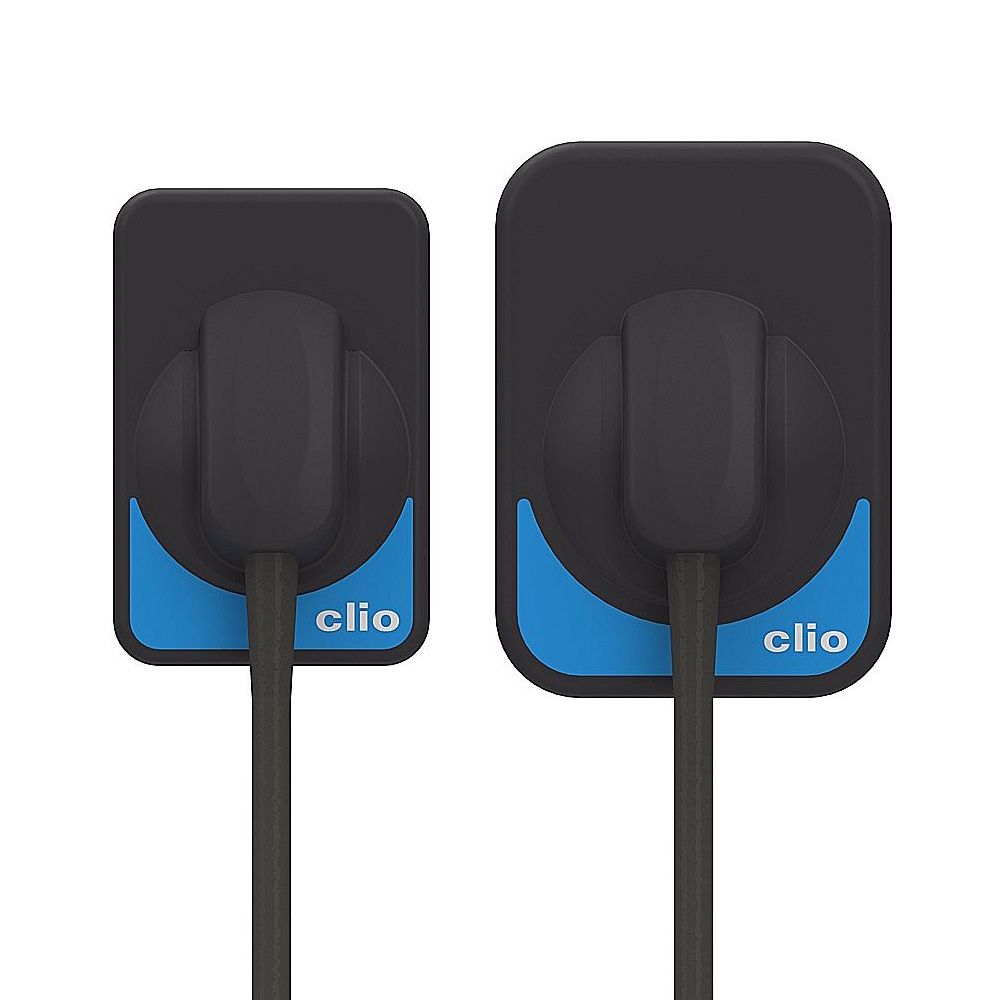

    Clio X-Ray Sensors

    Size 1 Sensor

    Size 2 Sensor

    External Dimensions

    24.35 x 36.73 mm

    30.49 x 42.80 mm

    Active Area

    19.95 x 30.02 mm

    25.99 x 36.02 mm

    Sensor Plate Thickness

    5.41 mm

    5.41 mm

    Sensor Cable Length

    3 meters

    3 meters

    Image Resolution

    26.3 lp/mm theoretical
    20lp/mm actual

    26.3 lp/mm theoretical
    20lp/mm actual

    Image Size

    1580 x 1050 pixels

    1896 x 1368 pixels

    Image Pixel Size

    19 x 19 microns

    19 x 19 microns



    Minimum Requirements

    Recommended Requirements

    Windows XP, Windows Vista, Windows 7, Windows 8 (32-bit and 64-bit), or Mac OS X

    Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 (32-bit and 64-bit), or Mac OS X

    Imaging Software Options: SOTA Image, Dexis 9 and Dexis 10, Vixwin Platinum, Eaglesoft, Kodak Dental Imaging, Sidexis, Apteryx, Tigerview, Adstra, and more

    Imaging Software Options: SOTA Image, Dexis 9 and Dexis 10, Vixwin Platinum, Eaglesoft, Kodak Dental Imaging, Sidexis, Apteryx, Tigerview, Adstra, and more

    Intel Pentium IV 1.3 GHz or faster

    Intel Core2 Duo 1.5 GHz or faster

    512 MB of RAM or more

    2 GB RAM or more

    50GB available disk space or more

    50 GB available disk space or more

    32-bit color, 1024x768 video card

    32-bit color, 1024x768 video card

    Standard LCD Monitor with at least 1024x768 resolution

    Standard LCD Monitor with at least 1024x768 resolution


    Innovating Digital X-Ray Sensors

    Clio is equipped with next-gen CMOS fiber optic technology with Csl Scintillators, allowing us to provide the largest active area plates in the industry. Being able to theoretically create 26 line pairs allows Clio to take the highest quality images of almost any x-ray sensor. With our SOTA Image Software, we can guarantee our digital dental x-ray images will match or surpass the quality of any competing system.

    Built to Outperform and Outlast the Competition

    Our x-ray sensor is built to withstand the day-to-day wear and tear of your practice. The patented Kevlar reinforced cable helps prevent damage from coming to the digital x-ray sensor. Unlike other dental sensors our USB cable is fully replaceable, saving you from being forced to buy a brand new sensor if it breaks. Clio’s is one of the only digital x-ray sensors that is fully water submersible, allowing you to easily clean it helping with infection control.

    Make Your Workflow Easy

    Clio’s integration allows you to use our digital x-ray sensor with most major imaging software. With Clio, there are no disruptions to workflow with additional pop-ups or inconveniences. By integrating with your imaging software, our dental x-ray sensor is able to take advantage of your imaging software capabilities, making implementation and workflow easy.

    Better Experience

    Clio dental x-ray sensors have rounded corners providing optimal patient comfort. Size #1 and #2 are available to cover all x-rays for a full mouth series for both adults and children.

    Lower Cost

    Clio x-ray sensors allow you to take the highest quality images without breaking the bank. Fully customizable sensor settings and image filters allow for a seamless workflow that lets you see more patients.

    Superior Images

    Accurately and confidently provide patient diagnosis. Better image quality gives you the precision you need to communicate with patients, promote understanding, and gain trust.

    Ambidextrous Slide-Focus and Capture Button

    Our slide-focus covers the maximum width and area on the camera body, giving you—single-handedly—the ability to easily adjust focus and capture images without having to re-adjust your hand placement or search for a tiny component. However you hold the camera, by the tip of your thumb or index finger, the large focus slider is designed not to impede your flow, letting you make decisions on the fly without even looking.

    CMOS Sensor – 1/3” Large Pixel With Native HD Resolution

    MJPEG Output Resolution – 1280 X 720P and alternate 640 X 480 for backwards compatibility

    Signal Output – USB 2.0 forward compatible with USB 3.X

    Angle of View – 61 degrees

    Focus Range – 2mm-200+mm (infinity)

    Maximum Magnification – 640x480:20X -1280x720:50X

    Lighting – 6 True White LEDs

    Distortion – <5%

    Driver Type, – UVC (USB Video Class)

    Operating Systems – Windows 7/8/10 (32/64 bit) and macOS Sierra+

    5-Year Warranty

    For 2 years, SOTA will repair or exchange parts or equipment due to manufacturer defect free of charge. As a complimentary service, with every Clio Digital X-ray Sensor purchase, sensors that do not fall under the 2-year warranty will receive significant discounts for five years.

    Free 60-Day SotaCare

    From date of purchase, you will receive free unlimited tech support via phone, internet or video conference, free software upgrades, loaner sensors during any repair and free shipping, regardless of number of sensors.
