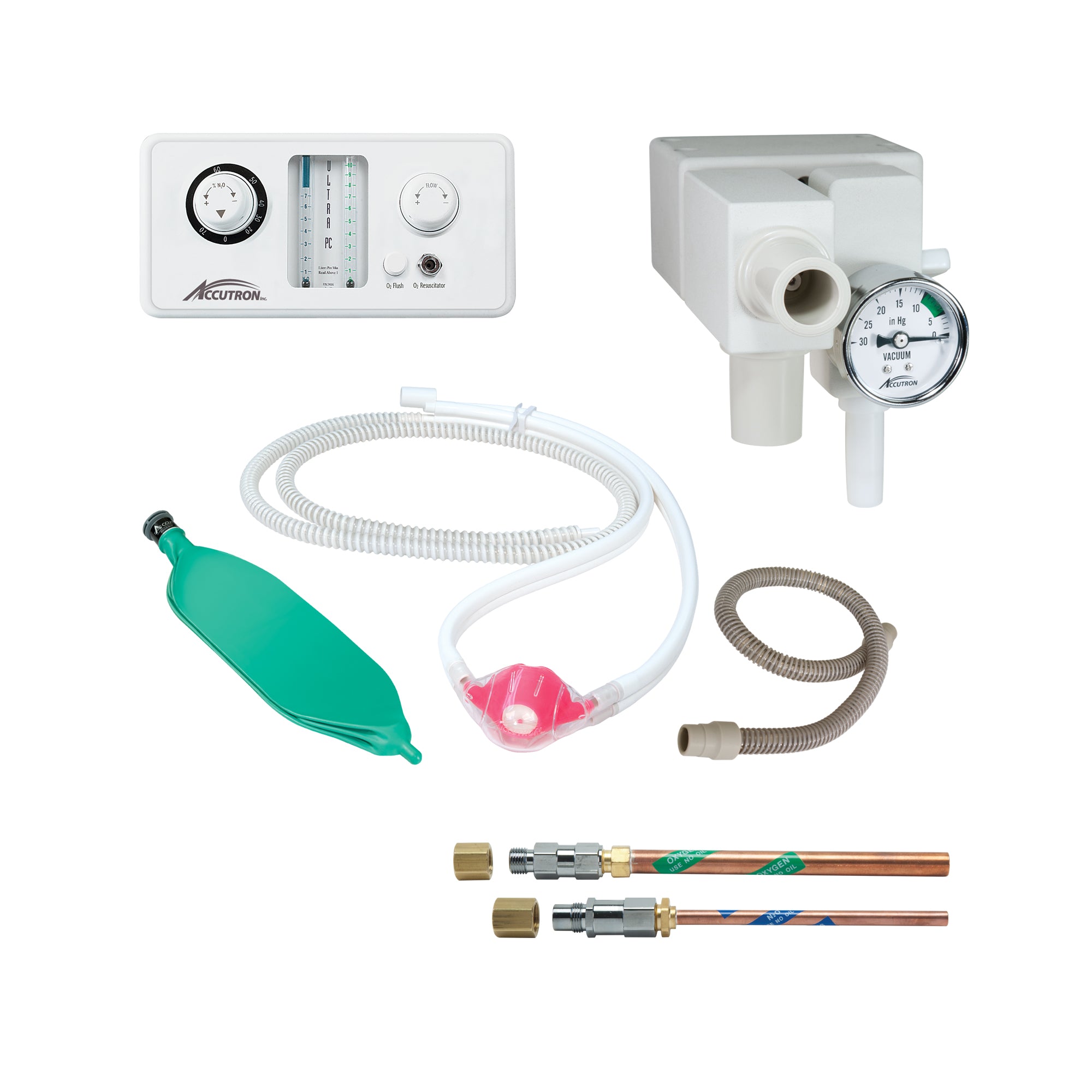

Accutron Ultra PC% Cabinet Mount Pkg. H CHAIR

Item # 36800-CHAIR

The Ultra PC™ % Cabinet Mount Flowmeter offers a solution to the increasingly complex issue of operatory space planning. The low-profile unit complements modern operatory design and can be built into a variety of office cabinetry configurations.

• Single-knob total flow control.
• Nitrous oxide ratio control with 70% maximum.
• Oxygen fail-safe and oxygen flush.
• Oxygen resuscitation connector.
• Emergency air valve.
• Directional check valve.
• Continuous oxygen and nitrous oxide flow tubes.

(Note: Requires separate purchase of appropriate RFS Chairmount Kit (see product line RFS Chairmount Kits))

All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.

Dimensions (W x H x D): 9 3/4" x 4 3/4" x 3 1/2"
Mounted Dimensions (W x H x D): 9 3/4" x 4 3/4" x 1 1/4" (to end of knobs); 9 3/4" x 4 3/4" x 1/4" (front plate only)
Weight: 6 lb (2.7 kg)
Mixed Gas Outlet Diameter: 7/8" nominal (22 mm)
Oxygen Inlet: Male DISS (CGA 1240)
Nitrous Oxide Inlet: Male DISS (CGA 1040)
Nitrous Oxide Mix Ratio Range: 0-70%
Oxygen Flow Range: 1-10 LPM
Nitrous Oxide Flow Range: 0-7 LPM
Inlet Pressure (each gas): 50-55 psi
Resuscitator Connector: Quick Connect (1/4" Imperial)
Resuscitator Connector Flow: 100 LPM Oxygen
