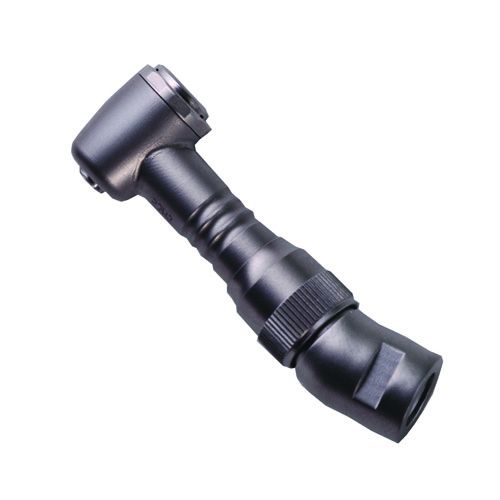

DentalEz 263954 Titan-T Lf Bb Autochuck Fg Angle

Item # 263954

Features and Benefits:

• Titanium Construction
  25% weight reduction provides greater tactile response and reduces hand and wrist fatigue. Superior strength and corrosion-resistance of titanium have proven to better withstand the damaging effects of heat sterilization.
• System Flexibility
  100-5,000 or 100-20,000 rpm (depending on motor) speed range capability, requiring only a minimum of attachments to meet a variety of procedural needs.
• LubeFree
  Motor, Straight Nose Cone, Motor-to-Angle Adaptor, Torque Multiplier, and Angles are LubeFree, which reduces maintenance time and the high cost of repeated lubrication.
• 360° Quick Connect Swivel
  Reduces tubing drag for optimum operator comfort. Redesigned for easier disconnection of the handpiece for sterilization.
• Better Performance Under Load (Torque)
  Less likely to stall under higher torque requirements than other low-speed handpiece systems.
• Chairside Repairable Angles
  minimized operator downtime and reduced cost relative to other low-speed handpiece systems.

SPECIFICATIONS

Construction:  Titanium (Titan-T) - Stainless Steel (Titan 3)

Speed Range:  100-5000 rpm, 5000 rpm Speed Motor
                            100-20,000 rpm, 20,000 rpm Speed Motor

Recommended Air Pressure:   40 psi at swivel interface

Air Flow:  2.1 SCFM @ 40 psi at maximum power output
                   at the swivel interface

Sterilization:  Steam Sterilization up to 275°F (135°C)

Rotation:  Forward and Reverse

Lubrication:  Not required for LubeFree motor and attachments.
                        daily for lubricated angles
