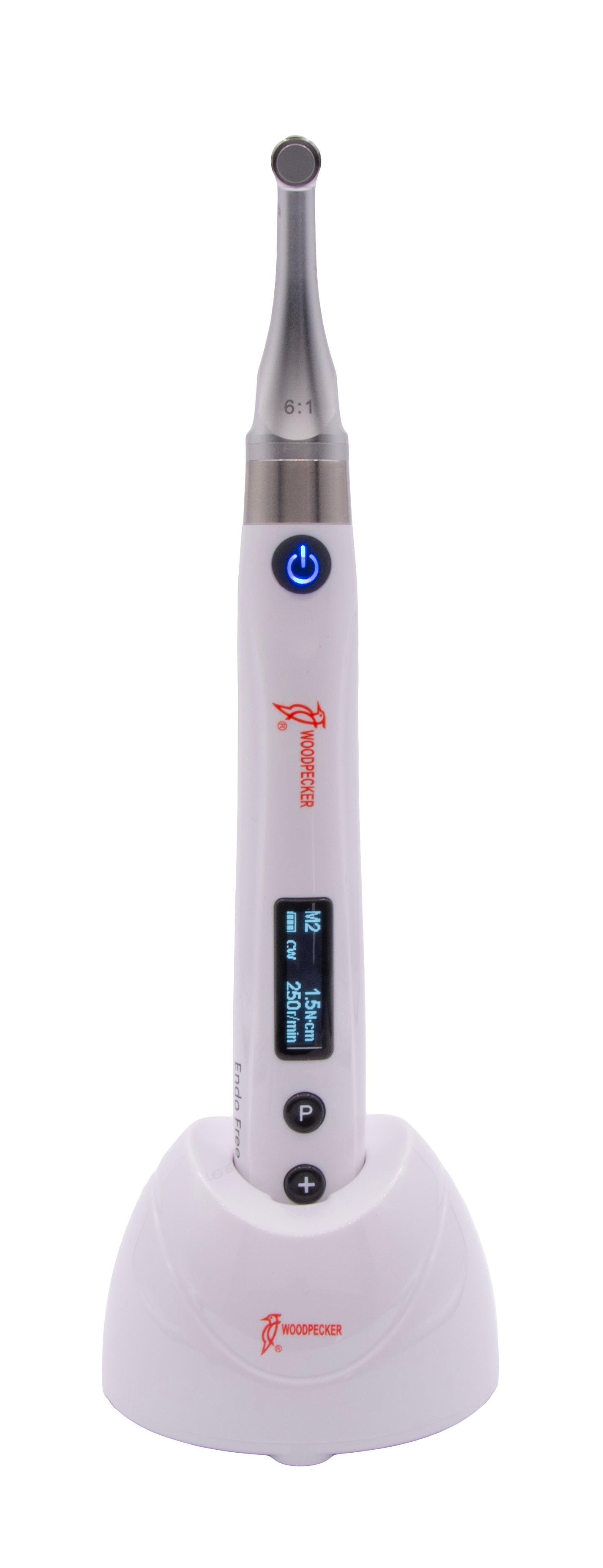

Endo Free Cordless Endodontic Motor

Endo Free from Woodpecker is a cordless and brushless endodontic motor with 360° rotation ideal for use with both rotary and reciprocating endo file systems.

The Endo Free Motor is a 360° rotatable cordless handpiece with a 6:1 Contra Angle to support maximum visibility and accuracy.

Endo Free features a premium brushless motor delivering low heat, low noise, and a service life span that is 10 times longer than a brush motor.

Pair the Endo Free with the Woodpex V Apex Locator for ultimate visibility of the canal using the LCD display.

With a dynamic speed range of 100-1500 rpm, and a Torque of 0.4-4.2N.cm., the Endo Free from Woodpecker offers 4 working modes, including a reciprocating mode, making it the perfect instrument for both general dentists and endodontists that desire a lightweight endo motor.

Specifications

• Speed: 100rpm-1500rpm.
• Torque: 0.4N.Cm-4.2N.Cm.
• Weight: 106.8g (handpiece & contra-angle).
• Contra-angle head height: 9.7mm.
• Contra-angle head diameter: 8mm.
• Neck diameter: 6mm.
• Low wear, low heat and longer service life.
• Brushless motors provide approximately 10 times the service life of brush motors.
• Adjustable reciprocating angle with 10° Interval.
• Adjustable range of forward reverse reciprocating angle: 20°-400°.
• 6:1 mini contra-angle delivers broader operation field.
• 4 working modes for safer and more efficient preparation.
• Forward Rotation Mode.
• Reverse Rotation Mode.
• Reciprocating Mode.
• ATR Mode.
• Can be connected to an Apex Locator.
• Warranty: 24 months for unit and handpiece, 12 months for contra angle.

Contents

• EndoFree Handpiece.
• Contra angle 6: 1.
• Charging base and power adapter.
• Silicone case.
• Measurement cable.
• Clip Files.
• Instructions and quality certificate.
